Whether you're hosting an outdoor event, setting up a vendor booth, or organizing a festival, securing your canopy tent is crucial to ensure stability and safety. A 10x20 custom canopy is a popular size for medium to large-scale events, but without proper anchoring, it can easily be affected by strong winds, uneven ground, or other environmental factors. This guide will help you determine how much weight is needed to properly secure your 10x20 tent, taking into account various factors that can influence the required weight.
How Much Weight Does a 10x20 Canopy Need?
A general rule is to use about 40 pounds per leg to secure a canopy tent 10x20 in "fair" weather (light breezes or windless conditions). Unlike standard 10x10 canopy tents, 10x20 models typically feature six legs. This means you need a total of 240 lbs of ballast distributed across the frame to meet baseline safety requirements. However, this is only a baseline. Additional weight may be needed depending on the conditions you're facing.
If your event is held in a windy location, or if you're setting up the tent on hard, non-porous surfaces like concrete, more weight will be necessary to avoid the risk of the canopy being blown away or lifted off the ground.
Factors That Change the Weight Requirement
The "standard" weight is a starting point. External variables often require you to increase your anchoring.
Wind
Wind is the primary enemy of any temporary structure. Most 10×20 pop-up tents include a basic staking kit, which can significantly improve stability when installed correctly. Based on wind speed ranges defined by the National Weather Service, the table below outlines recommended weight and anchoring methods for a 10x20 pop up tent in different wind conditions.
| Wind Speed(MPH) | Recommended Weight per Leg | Methods |
| 0–12 (Light) | about 40 lbs | Light weights or stakes. |
| 13–18 (Moderate) | about 60 lbs | Use stakes or heavy weights. |
| 19–24 (Fresh) | 70-90 lbs | Weights or stakes + tie-downs. |
| 25–31 (Strong) | 90+ lbs | Heavy weights + tie-downs. |
| 31+ (High Wind) | Do Not Use Canopy | Too dangerous—take it down. |
Higher wind speeds require significantly heavier weights and additional securing methods. However, even heavy weights may be insufficient in strong winds.
Although you'll see manufacturers label their tents with wind ratings of up to 50 mph, this refers to the strength the frame can withstand and only guarantees that the tent won't be destroyed at that wind speed. Strong winds can also endanger the items under the canopy and pose serious risks to personal safety.
For these reasons, most manufacturers recommend taking down canopies when wind speeds exceed 25 mph, and they should not be used when winds exceed 31 mph due to serious safety risks.
Ground
The surface your canopy stands on dictates how you achieve your weight goals:
- Grass/dirt: You have the advantage of using heavy-duty stakes in addition to weights. A combination of a 30 lb weight and a 12-inch steel stake per leg provides excellent stability.
- Concrete/pavement: You are 100% reliant on weight, because stakes cannot be used. You should lean toward the higher end of the weight spectrum (50–60 lbs per leg).
- Sand or loose soil: Soft ground reduces holding power, so heavier weights or water barrels are recommended(60+ lbs per leg).
Wall Attachments
Adding sidewalls significantly increases wind resistance, causing even light breezes to place extra stress on the canopy frame.
For a 10x20 canopy with sides, increase the weight on each leg by about 20% and ensure all connections are securely fastened. In gusts, removing sidewalls or lowering the canopy height can greatly reduce risk and improve overall safety.
Effective Methods to Secure a 10×20 Pop Up Canopy
There are many ways and tent accessories to secure a custom canopy tent, but the following are the most effective methods to protect your investment:
Stake

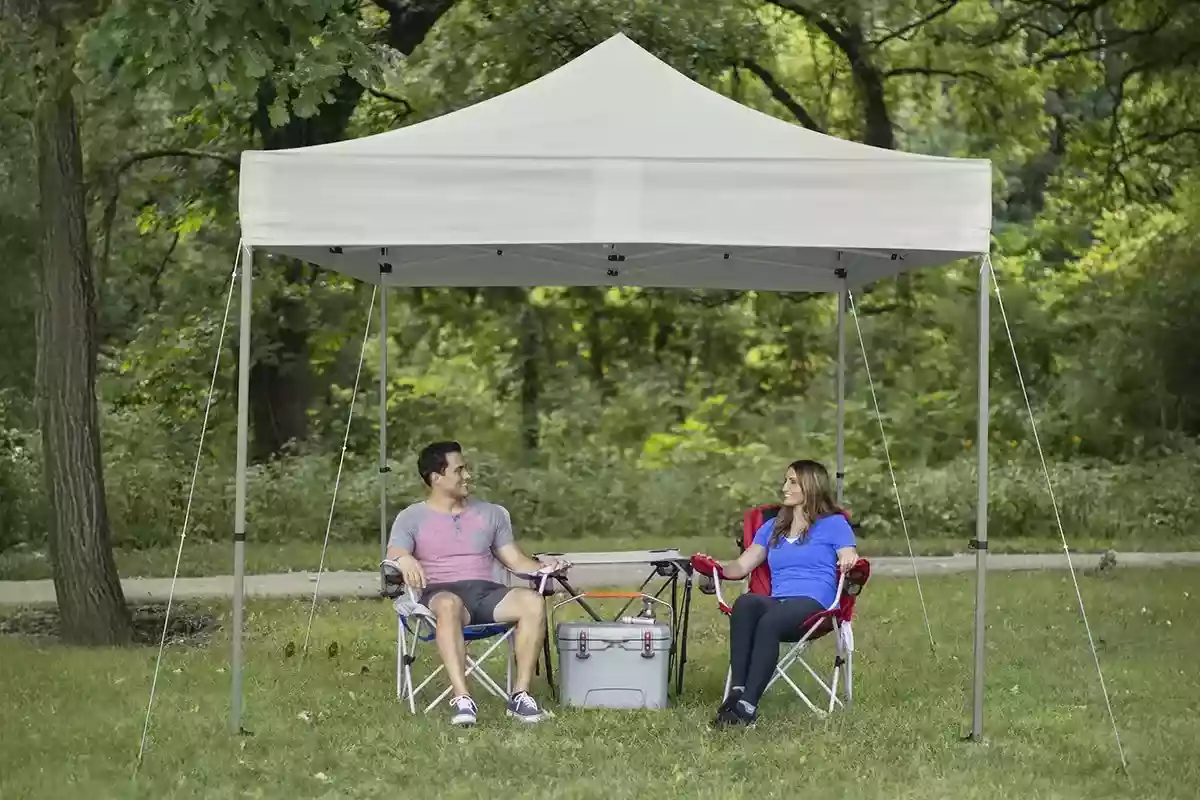

Generally, a 10×20 pop up tent will come with a staking kit. When properly installed, a single ground stake can provide holding power roughly equivalent to 200 lbs of downward weight. With four stakes, one at each corner leg, you can achieve an effective anchoring force of about 800 lbs, which often exceeds the recommended weight needed for optimal wind resistance on soft ground. However, stakes can only work on grass, dirt, or other soft surfaces.
Professional Weight Plates
These are interlocking cast-iron or rubber-coated disks that slide directly onto the tent leg. They are the most professional-looking and easiest to stack.
Sandbags
Sandbags are a versatile and widely used option. They are easy to fill, transport, and secure around the legs of your canopy. Filled sandbags provide significant weight and are especially useful for temporary setups or events on surfaces where staking isn’t possible.
Water Barrels
Water barrels provide heavy, adjustable weight ideal for securing canopies on hard surfaces like asphalt or concrete. They can be filled on-site and emptied for easy transport and storage. Water barrels are particularly effective in windy conditions and for longer-term setups.
Conclusion
Securing a 10x20 canopy is about more than just preventing a runaway tent; it’s about ensuring your safety. By following the 40–60 lbs per leg rule and adjusting for wind and sidewalls, you ensure that your event stays covered and your items stay safe.
